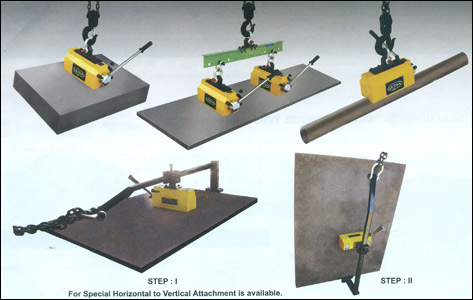

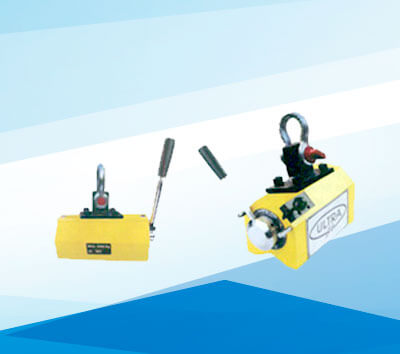

"ULTRA" brand PERMANENT MAGNETIC LIFTER
Used for lifting & handling of steel plates, heavy block & castings as well as heavy round or cylindrical parts.
The 1 : 3.5 safety factor of the recommended load to the Test load ensures use at optimal working conditions even with Substantial air gaps & surface conditions.
Compact design, strong magnetic pull, total work safety
Easy operated lever for ON-OFF.
Spring loaded block at side fors safety feature..
Suitable for Flat & Round jobs..
No damage on job during operation.

Sr. No.	Cat No.	Size (mm)	Lifting Capacity for flat job	Tested Capacity for flat job	Weight
0	UL 80500	90 L X 65 W X 85H	100 Kg	350 Kg	4 Kg
1.	UL 80501	170 L x 85 W x 105 H	200 Kg	700 Kg	9 Kg
2.	UL 80502	170 L x 85 W x 105 H	250 Kg	875 Kg	9 Kg
3.	UL 80503	230 L x 85 W x 105 H	300 Kg	1050 Kg	13 Kg
4.	UL 80504	230 L x 85 W x 105 H	450 Kg	1575 Kg	14 Kg
5.	UL 80505	255 L x 110 W x 130 H	600 Kg	2100 Kg	25 Kg
6.	UL 80506	290 L x 110 W x 130 H	700 Kg	2450 Kg	30 Kg
7.	UL 80507	350 L x 130 W x 135 H	1000 Kg	3500 Kg	45 Kg
8.	UL 80508	405 L x 150 W x 160 H	1500 Kg	5250 Kg	68 Kg
9.	UL 80509	470 L x 170 W x 185 H	2000 Kg	7000 kg	103 Kg
10.	UL 80510	570 L x 300 W x 270 H	3000 kg	9000 kg	280 Kg
11.	UL 80511	730 L x 350 W x 310 H	5000 kg	15000 Kg	540 Kg

"ULTRA" brand AUTOMATIC PERMANENT MAGNETIC LIFTER
Strong magnetic path produced by the NDFEB magnet.
ON & OFF of the magnetic force is controlled by hanger connected to this product up & down.
The magnetic lifter have the feathers of strong attraction,small size & weight, powerful force.
Safety factor of automatic magnetic lifter is 1 :3 times.
Automatic permanent magnetic lifter are available from 1000kg to 3000kg.
No electric supply is required.
Suitable for flat jobs.

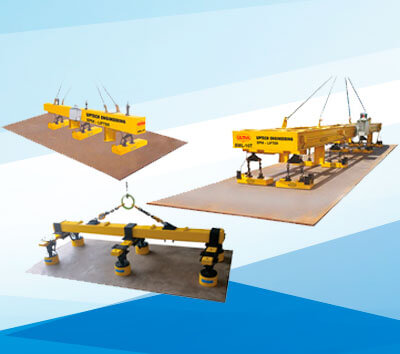

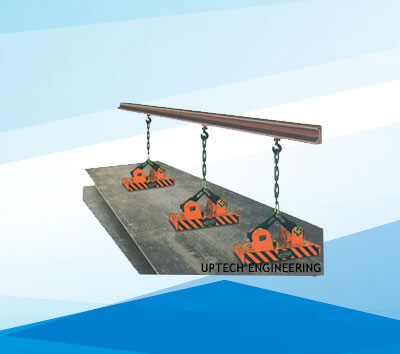

ELECTROPERM MAGNETIC LIFTERS for Plate Handling
EPM lifting magnet is designed with the consideration of all industrial safety knobs. Therefore they are very compact light weight high strength and very reliable and safe in use.
Electro Perm Magnetic lifter is combination o permanent as well as electro magnet power which is required to clamp the job or declamp the job.
Lifted plate will not failed down even electric power failed because EPM LIFTER requires power only for holding the plates and declamping the plates. So it is 100% safe for handling the plates.
Continuous Electricity is not required so it having advantage of Saving electricity over conventional Electro Magnetic Lifter.
Electro permanent magnetic lifter is used with combination of various magnets. At fix structure with provision of chain. So this will help to handle plain as well as bend sheets in short it will take care of bendness of plates
Safety interlock key to magnetized / demagnetized. Two buttons are to be press simultaneously with help to avoid change of accident.
“Inching” feature - when the magnets is switch ON, It might lift more than a single plate. Inching operation reduces the magnetic power slowly such that additional plates, if lifted are dropped. This is used to make sure that only one plate is handled at time.
Lamp Block - Displays the systems present state.

Electro Mangnetic Lifter is design with the consideration of all industrial safety knob, therefore they are very compact, light straingth and very reliable safe in use.
Electro Magnetic Lifter are work on Electricity & require 220 V or 415 supply
Electro Magnetic Lifter is used with combination of various magnets. At fixed structure with provision of chain. So this will help to handle plain as well as bend sheet, In short it will take care of bendness of sheet
Inching feature or variable power knob is provided, It ensure that single plate wili be lifteds
Lam block - Displays the system presents.

It is use on flame cutting machine, plazma cutting machine and water jet cutting machine
It is useful for handling small as well as large plates
Controller is having opetional facility of battery back up which helps to keep magnet on for 15 minutes

Designing of electro Mangnetic Lifter Depands upon minimum andm aximum size of plate. (Lengh x weight x thickness)
Crane Capacity
Weight of plates

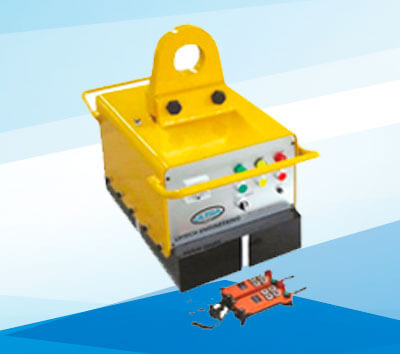

Batteries only work in the moment of magnetization & demagnetization, during the lifting & Handling
Maintenance free completely sealed rechargeable batteries
Inbuilt battery charger
Safety Factor : 3 Times
Light Weight & Robust Construction
With battery full charged can switch on / off approximately 400 times
Widely used in the places where the access to power is inconvenient

It is use on flame cutting machine, Plasma cutting machine, water jet cutting machine etc.
It is useful for handling small as well as large plates
It is suitable for handling Plates & round bars
Radio remote control is optional
